18 Essential Electrical Terms Everyone Should Understand

AC Power

A key electrical term to understand is AC. Since the Tesla-Westinghouse power station at Niagara Falls began operating in 1895, alternating current (AC) electricity has become the norm across North America and later worldwide. This type of electric current is generated through rotating turbines, causing the flow to oscillate in a wave-like pattern as it moves back and forth.

"Imagine it as water moving through a pipeline," explains Vasilevski.

Power plants produce alternating current (AC) since it’s simple to boost voltage levels for effective long-distance transport via power lines. Subsequently, these high voltages can be stepped down again with transformers when they reach residential or commercial areas. This implies that central generation facilities utilize this method. wind, solar, water Nuclear fuel or fossil fuels have the capability to supply energy to communities located hundreds of miles apart. Additionally, alternating current comes with a specific frequency. In North America, this frequency is set at 60 cycles per second.

On the contrary, DC voltage is utilized for small-scale uses such as operating electric vehicles, smartphones, laptops, batteries, and various gadgets that demand constant and stable energy. Additionally, solar panels produce DC power.

“Batteries naturally produce DC because the chemical reactions inside them push the current in one direction,” says Vasilevski. “It flows in a single direction without changing, like water flowing steadily in one direction through a hose.”

Grasping AC electrical jargon may assist property owners in comprehending how electricity enters their home, what occurs once it arrives, and how to manage it effectively.

Voltage

John Williamson, who serves as the electrical operations supervisor at the Minnesota Department of Labor and Industry, draws comparisons between different voltages during his work. electrical circuit Just like how increased pressure boosts the amount and speed of water moving through a pipe, boosting the voltage enhances the production of electrical power.

The voltage from alternating current (AC) varies sinusoidally with time. power generator Isn't steady because it comes from a DC source such as a battery; instead, it fluctuates throughout each cycle. In order to contrast this with the consistent voltage provided by a DC power supply, electricians determine an average nominal voltage. This value is what appears as AC Voltage (VAC) on the labels of various appliances and electronic devices.

In North America, any gadget that connects to a regular outlet wall outlet is rated for 120 VAC. However, the actual operating voltage ranges from 110 to 125 VAC because of the voltage fluctuations.

Transformer

The transformer primarily bears responsibility for producing the electrical grid What we have today is a transformer, which is a device capable of stepping up and down electrical voltages.

If you've ever passed by an electric power station, you have noticed the several big cylindrical structures linked to the transmission lines. power lines If you observe the utility poles near your home, you'll notice small cylindrical objects attached to them; these are called transformers. The big transformers located at the power station boost the electrical voltage up to thousands of volts, whereas the smaller ones mounted on the distribution lines step down this high voltage so it can be safely used within homes and businesses.

A lot of electronic gadgets include a transformer to step down household voltage to a safer level suitable for their delicate components. This transformer can be found in the rectangular housing located at the tip of the cord where the prongs connect.

Service Panel

The service panel serves as the primary hub for the electrical system, where cables from the transformer link up and distribute power to separate circuits throughout the house. This component is a rectangular metal enclosure featuring a door that opens to reveal its contents. circuit breakers For each of the separate circuits.

Every electrical wire bringing power into your home from the utility line transformer hooks up to a copper or alloy strip located at the rear of the breaker box. Known as hot bus bars, these strips have connections for every circuit breaker in your residence.

Electrical current can flow solely when there’s a full loop; therefore, the panel comes with a neutral terminal to supply an electric pathway for returning to the transformer. Additionally, it features a connection to the ground ensuring every household electronic device remains safely earthed.

The panel is typically located in the basement, inside a closet, or outdoors, and accessible when you need to address issues with it. electrical problems It should be simple to access, so make sure to keep the area in front of it free.

Circuit Breaker

The set of black switches within your device home’s service panel encompasses all the electrical pathways in your residence. Every switch forms part of an apparatus called a circuit breaker. Should your dwelling be constructed prior to 1950, it could potentially feature a fuse box. These fuse boxes utilize screw-in fuses rather than toggleable breakers.

Circuit breakers are overload protection Each device connects to one of the panel's live buses and manages a circuit containing one or more light fixtures or electrical outlets. Should the circuit encounter an abrupt increase in current, the breaker will activate to stop this. home fire .

"If multiple appliances are used at the same time on one circuit, they could potentially draw more electricity than the circuit can safely manage," explains Daniel Mock, who serves as the vice president of operations. Mister Sparky This leads to the circuit overheating and triggering the breaker.

Every circuit breaker comes with an "amperage characteristic," which indicates the highest current level it can handle before triggering a trip. Breakers typically come in ratings of 15 and 20 amps for circuits operating at 120 volts. Heavy-duty devices running off 240 volts usually require dual-pole breakers, often available in ratings ranging from 20 to 60 amps.

Branch Circuit

Imagine the service panel as the root system of a plant; then, visualizing each branch circuit as individual roots extending from this main structure becomes simpler. Every one of these root-like circuits is managed by what we call a circuit breaker. Collectively, they fulfill the entire power requirements for the construction.

The electrical code encompasses three varieties of branch circuits. First, we have the all-purpose circuit which provides electricity to both receptacles and light fixtures. Next comes the appliance circuit designed specifically for powering home devices without illuminating lights. Lastly, there’s the individual or dedicated circuit intended solely for one particular device.

Kitchen circuits are typically necessary in the culinary area, and occasionally in other spaces too. Certain appliances necessitate dedicated electrical circuits. large appliances , including the central air conditioner , electric range and water heater , among others.

Neutral Conductor

If you connect a device such as a light to a battery, the hot conductor is the wire that leads from the battery’s positive terminal to the light. The neutral conductor is the one that leads back to the battery’s negative terminal. It has to be there to complete the DC circuit or the light won’t work.

Current rapidly changes direction cyclically in AC circuits, and both conductors from the power line are hot. Between these two hot conductors, you would measure 240 volts. However, between each one of the hot conductors and the neutral conductor, you would measure 120 volts.

Many of the circuit branches within a home operate at 120 volts. According to the National Electrical Code (NEC), the neutral conductor is designated as follows: electrical cables It must be white. While the NEC does not specify a color for hot conductors, they typically use black or red.

Grounding Conductor

In addition to the neutral terminal, the electrical panel includes a grounding terminal. This is usually linked to a metal rod driven into the earth outside the house, though it might alternatively be attached to another grounded component. copper water pipe This operates underground. Each branch circuit includes either a bare or green grounding conductor which connects to the grounding bus.

The electrical code acknowledges both system grounding and equipment grounding as crucial for safety. Connecting the electrical system to the ground assists in stabilizing voltage levels during regular operation. Additionally, it aims to channel any current surges safely towards the earth. lightning strike To Earth so it doesn't harm anything.

Electric equipment grounding offers a continuous, minimal-resistance route for fault currents to return to the main electrical panel, ensuring a blown fuse or tripped circuit breaker. This grounding wire extends throughout the wiring system, linking directly with each component and metallic electrical enclosure involved.

Ground-Fault

Even with properly installed grounding systems, electricity might still utilize a person’s body or an unsecured wiring link as a pathway to the ground. This could occur should somebody make contact with a damaged power cord Or due to a defective appliance switch, or when an exposed live wire directly touches the grounding wire or a grounded metallic object. This situation is referred to as a ground fault. Such an event triggers a sudden increase in electric current which can lead to overheated wiring, damage to electrical devices, and potential electric shocks.

"The unpredictability of ground faults increases their danger because they occur whenever electricity takes an unplanned route to the earth," explains WG Hickman, who owns the company. Tri-County Air Service .

A common scenario happens when an individual stands on a wet surface and comes into contact with an appliance that has an exposed electrical component. In this situation, electricity may utilize the person's body as a path to earth, leading to a severe—or even lethal—electric shock. Although standard 15- and 20-amp circuit breakers are intended to interrupt power flow during these surge events, they do not invariably prevent individuals from being shocked. electrical shocks .

Human bodies transmit electricity efficiently due to our composition of water and salts," explains Vasilevski. "Even minimal electric currents can lead to muscle spasms, burns, or shocks. More intense exposures may halt the heartbeat or inflict serious harm. A mere 30 milliamps of electrical flow can become lethal; hence, ground faults should not be taken lightly.

GFCI

A ground-fault current-interrupting (GFCI) receptacle or circuit breaker shields individuals from harm and prevents machinery from being damaged due to a ground-fault. Unlike regular circuit breakers, Ground-Fault Circuit Interrupters (GFCIs) respond quickly to even minor surges in electrical flow resulting from ground faults. They activate and cut off power at currents as low as 5 milliamps. Such electric currents exceeding this threshold have the potential to disrupt normal cardiac function in humans.

"Even under regular conditions, concealed problems such as a loose wire or compromised insulation can unexpectedly lead to a ground fault, making the installation of GFCI outlets crucial," explains Hickman.

GFCI receptacles feature two buttons on the front panel. One button is used for checking the functionality of the internal components, while the second one resets the system following a trip event. According to the NEC regulations, Ground Fault Circuit Interrupter (GFCI) outlets must be installed in areas such as kitchens, restrooms, utility spaces like laundries, and outdoor zones—places where water can be found, which serves as an excellent conductor of electricity. These GFCI outlets are progressively being substituted with newer models. GFCI breakers, Which safeguard whole circuits from a centralized point within the service panel.

Short Circuit

Similar to a ground fault, a short circuit leads to a spike in current, albeit due to distinct circumstances. A ground fault arises when electrical currents take an unexpected route to the earth. In contrast, a short circuit occurs when electric currents discover a path of lesser resistance within the circuit itself.

Short circuits usually happen when a neutral wire comes into contact with a live wire due to poor connections, damaged insulation, or incidents like accidents. tree branch falling on a power line.

“If a hot wire touches a neutral wire in your home’s wiring system or in an outlet or fixture, current will flow between them at rapid speed, which also causes overheating,” says Mock.

When a sudden increase in power due to a short circuit occurs, it typically triggers the circuit breaker. However, should this mechanism respond too sluggishly, the surge could rapidly elevate wire temperatures to thousands of degrees Fahrenheit. In cases where the wiring is near each other without direct contact, electrical arcs may develop as well. These arcs transform surrounding air into extremely hot plasma capable of swiftly starting a blaze.

AFCI

Electrical arcing and a ground fault represent distinct occurrences. Consequently, the protective devices for each vary, even though they share some commonalities.

A circuit-breaking arc fault current (AFCI) receptacle It features the same two buttons as a Ground Fault Circuit Interrupter (GFCI), yet includes a more sophisticated sensor. Unlike traditional systems, this device not only identifies potential arc faults prior to them occurring, but it can also differentiate between hazardous arcs and the typical arcing that takes place during routine actions like flipping a switch, turning on a light, or activating an appliance.

The aim of arc fault protection is to prevent fires , and the National Electrical Code (NEC) has progressively expanded the number of spaces where Arc-Fault Circuit Interrupters (AFCIs) must be installed, now covering nearly the whole house. Installing them is increasingly becoming standard practice. dual-function Using AFCI/GFCI breakers in the primary electrical panel instead of separate combination outlets around the home can be more cost-effective. Additionally, these breakers offer broader protection.

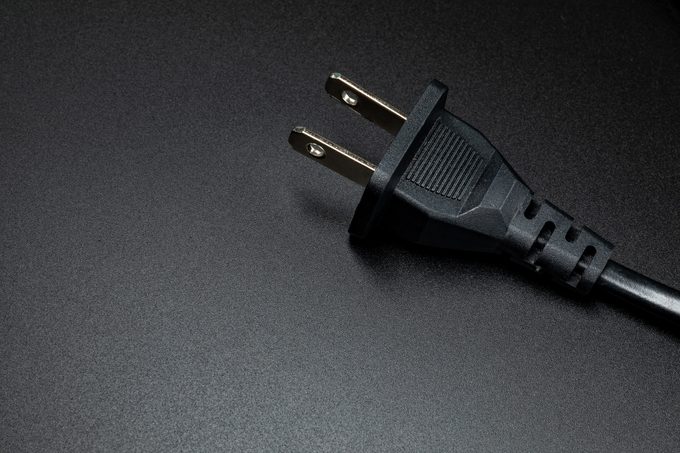

Polarized Plug

Some appliance plugs have just two prongs. If they are different sizes The plug has a polarization feature. You can only fit it into an outlet where both slots match the size of each prong, and insertion is possible in just one way. This design serves as a safeguard against potential grounding faults. To ensure proper wiring, the wider prong needs to connect to the neutral wire.

Household appliances and portable lights with polarized plugs are set up internally such that the live wire of the circuit ends at the switch. Power will only reach the internal components or the light bulb once you activate the switch.

A prime illustration is a table lamp. The broad prong links to the neutral wire in the electrical circuit. Consequently, this connection extends to the metal threading within the lamp socket. Meanwhile, the live wire goes through the switch before connecting to the brass contact at the base of the socket, ensuring it remains inaccessible during use. Reversing these connections would pose an electric shock risk whenever someone attempts to replace the bulb. light bulb or groping for the lamp switch in the dark.

Outlet

Certain electrical terms mean different things to laymen and tradesmen. People usually refer to a wall plug as an outlet, but that isn’t what electricians mean by the term. An outlet is any location in a circuit that supplies electricity. It can power a light fixture, a smoke alarm or a hardwired appliance, as well as a wall plug, which is more properly known as a receptacle.

The placement of electrical outlet boxes usually occurs during the initial construction phase. the initial installation stage of electrical wiring Before installing the drywall over the framing, the electrician routes cables to the designated outlet box positions and securely attaches them within the electrical boxes as needed. Afterward, the electrician returns to neatly organize all wires and perform any necessary splicing inside the outlet boxes, followed by adding appropriate labels.

Once the walls have been finished with wallpaper or paint, the electrician easily hooks up the predetermined cables to whichever gadget, lighting component, or electrical appliance is designated for installation in those spots.

Electrical Box

Unless you recognize what an electrical junction box is, you may not be aware of its presence at all. However, there’s one located wherever a gadget or lighting fixture attaches to the home’s power system. This complies with NEC regulations. The purpose of this box is to keep wire connections separate from wooden structures, insulating materials, and other potential ignition sources that could result from overheated wiring.

The most basic electrical enclosures come in circular or square shapes, usually crafted from plastic and often fastened directly to the frame with nails. In certain cases where specific equipment is used, metal boxes are necessary; these include a grounding screw allowing them to be linked to an earth connection.

When you're adding a new gadget to your current wiring setup, it’s typical to utilize a remodeling box, which often comes as a shallow plastic container (since plastic does not require grounding). It has anchors This allows you to secure it to the drywall rather than attaching it to the framing.

Multimeter

Certain electrical terminology pertains directly to electricity itself, whereas other terms denote various tools used in the field. multimeter is among the most potent diagnostic assets available electrician’s tool belt. This inexpensive measuring device includes a device for measuring voltage, current, and resistance along with a set of test leads. It has numerous applications such as verifying whether devices and wiring carry an electrical charge, and identifying interruptions within a circuit.

To perform a voltage test on an apparatus like a switch, you should ensure the power is active and the switch is linked within the circuit. The meter assesses the voltage across either the live wire and neutral line or ground connection. Conversely, when testing something akin to a circuit breaker or fuse, referred to as a continuity check, this procedure requires deactivating the electricity supply first and isolating the section under examination away from the broader electrical network. During this process, the meter emits a minor electric flow into the system then gauges the level of opposition encountered.

Wire Strippers

Wire strippers are another crucial electrician’s tool, and one every Do-it-yourself homeowner tackling electrical tasks It should include a pair of spring-loaded pliers featuring different diameter notches along with wire strippers. These tools are essential for stripping off the insulation from single wires before joining them together or attaching them to an apparatus.

The slots on the edges of a pair of wire strippers are designed to match closely different wire sizes. Place the correct slot around the section you wish to strip. Afterward, turn the tool to slice through the outer covering. Finally, employ the textured end to remove the insulation smoothly. Using this method is quicker compared to using a knife for insulation removal; additionally, it offers better safety and precision.

NEC

One thing on our list of electrical terminology doesn't refer to either a tool or a kind of power. When electricians discuss adhering to "the code," they're referring to the regulations and standards שצרصند National Electrical Code (NEC). This code was founded by the National Fire Protection Association (NFPA) in 1897, with its guidelines and standards being revised every three years.

The National Electrical Code (NEC) isn't a federal law, yet it has been embraced by all 50 U.S. states, along with regulatory bodies in Mexico and various other nations globally. Updates to this code predominantly affect new building projects and renovations. With only a handful of exceptions, these changes typically do not have backward applications. This implies wiring Installed under an earlier version of the code, it can typically stay in place as long as it remains in good working order and is safely usable.

Nevertheless, as the primary aim of the NEC guidelines and regulations is safety, homeowners contemplating modifications to their electrical systems ought to seek advice from an electrician. By doing so, they can guarantee that these alterations comply with current codes.

About the Experts

• Daniel Mock serves as the vice president of operations for Mister Sparky , and he boasts over 15 years of expertise in home services along with the electrical field.
• Daniel Vasilevski serves as both the director and proprietor of Bright Force Electrical And has been employed as an electrician for over ten years.
• WG Hickman is the owner of Tri-County Air Service In Mississippi, where they have been offering electrical and HVAC services for nearly two decades.
• Todd Trip p is a general contractor and the founder of Trip Mills Builders In Upstate South Carolina, and an expert in home improvements with JustAnswer .
